ARCELIA ULTRA

Categories Commercial, Linear High Bay

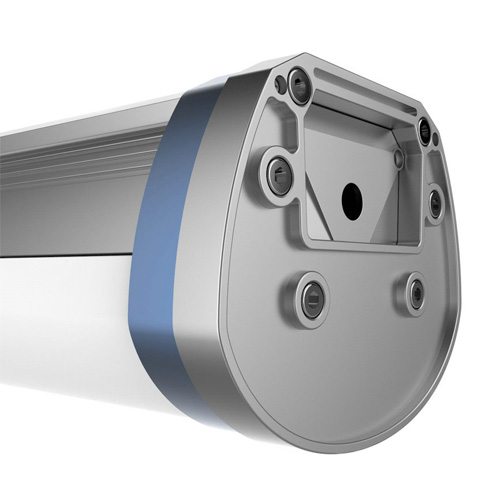

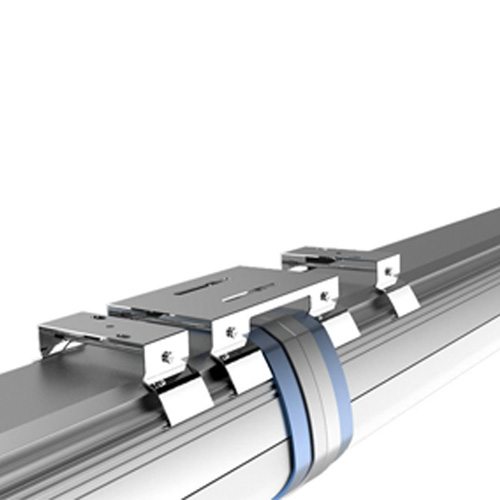

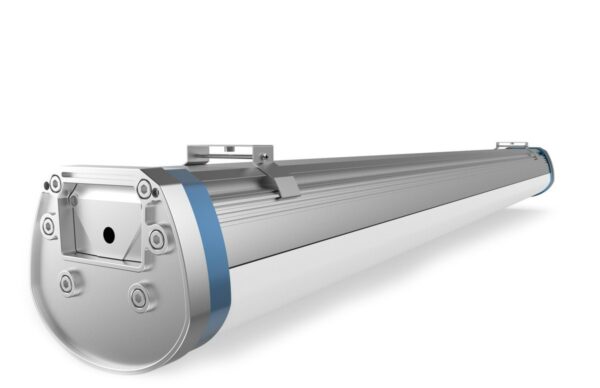

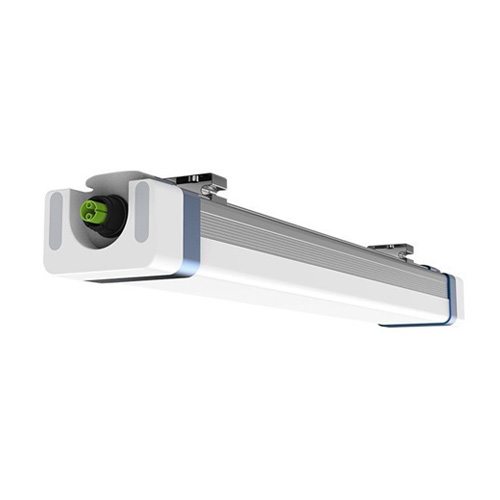

The Arcelia Ultra is a sturdy fixture resistant to dust, corrosion, moisture and pressure. It includes a top-quality transmittance cover delivering glare-free high luminance with great uniformity.

The patented optical design enables excellent light transmission and diffusion properties with toughness and improved flexibility. Its isolated driver eliminates risk of electric shock and premium aluminum housing allows optimum heat dissipation.

Specifications

Application

- Commercial, Linear High Bay

Regulatory & Voluntary Qulifications

ETL certified
Light Source Engine : LED
Driver/Power Unit/Transformer Power Supply Unit Regulating with constant light output
Not intended for use in environments containing airborne corrosive agents
TM21 results are available upon request

Special Features

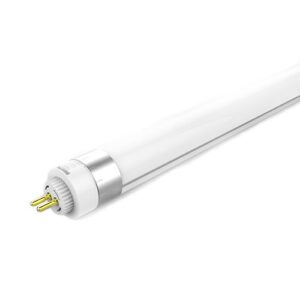

Base Type: G13, R1, D7FA8, G16T-5, Rotable Tubes

Field Beam Angles

MODEL	Beam	Beam Angle	9.8 ft	19.7 ft	29.5 ft
BSL-TL18-TBU-BSES-5000K-160	160	160	60.9	15.2	6.8

Technical Specifications

	18W
Lumens	2160
Efficacy	120
CRI	80 (5000K)
Voltage Input	100-277V
Voltage Output	36V
Amperage	1
Hertz	50-60 Hz
Total Harmonic Dist.	<25%
Control Options	Non-Dimmable
Operating Temp.	-4~104°F
IP Rating	IP20
IK Level	N/A
Weight	1 lb
Driver Life	50000 hrs

1 LM80 and TM21 results are available upon request.

Specifications are subject to change without notice.

Downloads

Spec Sheets

40W-80W-100W Spec Sheet DOWNLOAD

IES Files

BSL-TP40-ARU-LFES-4000K-120 DOWNLOAD

15W

BSL-DL15-LYR-GNPH-4000K-90 DOWNLOAD

18W

BSL-DL18-LYR-GNPH-4000K-90 DOWNLOAD

20W

BSL-DL20-LYR-GNOS-4000K-90 DOWNLOAD

30W

BSL-DL30-LYR-GNOS-4000K-90 DOWNLOAD

36W

BSL-DL36-LYR-GNOS-4000K-90 DOWNLOAD

Photometric Layouts

*Foot candles vary

Additional information

Beam Angle	18°, 190°, 210°
CRI	90
CCT	2500K-3500K
Efficacy	110 lm/w
