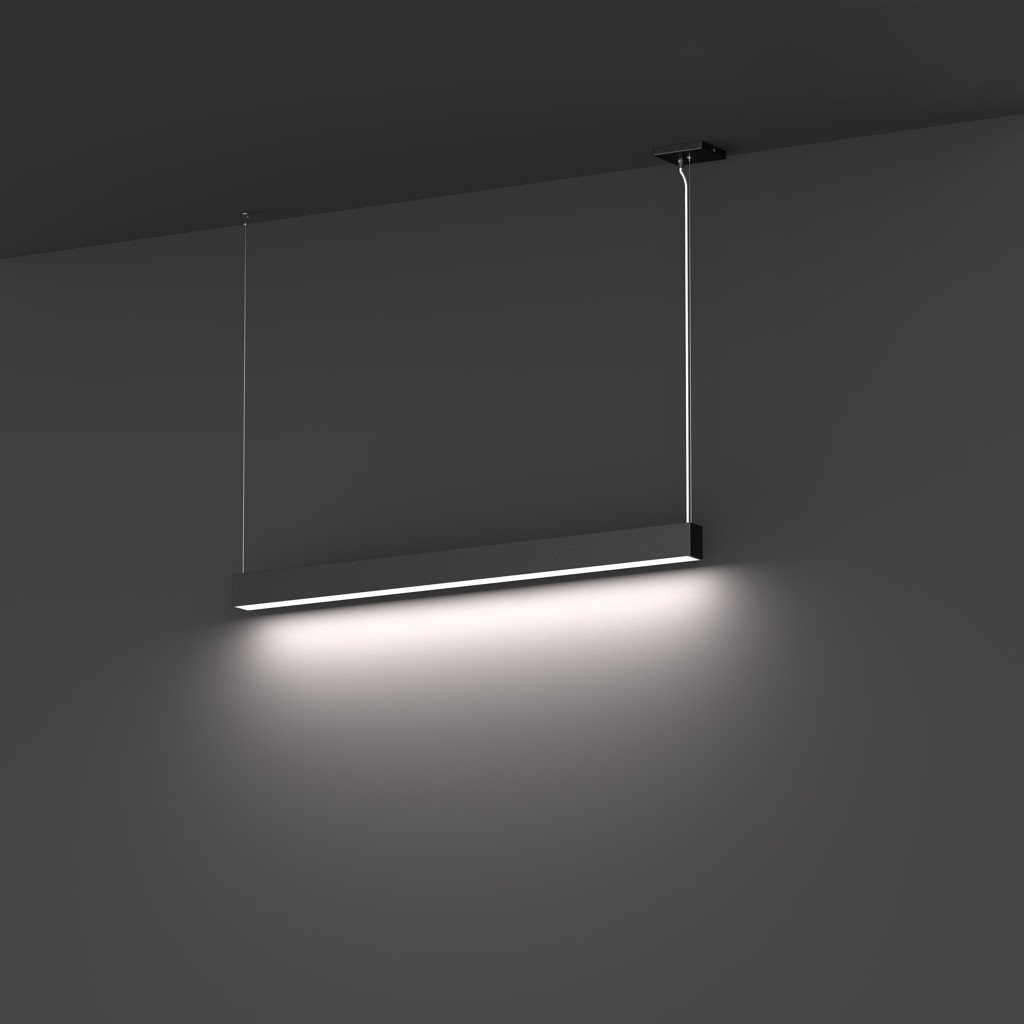

Suspended linear architectural fixture black housing

Linkable Big Shine LED linear architectural fixture accessory

PLEIADES II

Category Commercial

Introducing Pleiades II, the innovative connectable linear fixture that revolutionizes architectural lighting. With its sleek and compact profile, Pleiades II delivers both ambient and accent lighting while helping you achieve your energy efficiency goals.

Pleiades II’s unique design emits light in both upward and downward directions, creating a harmonious illumination that enhances any space. This connectable fixture allows for seamless lighting from one end of the room to the other, providing design flexibility and versatility. Choose from multiple wattages and 2ft or 4ft lengths to achieve optimal coverage in your space.

Pleiades II fixtures can be connected to each other with corner connectors, 3-way connectors, 4-way connectors, or T-shaped connectors, providing even more options for design customization.

Upgrade your space with Pleiades II and experience the perfect balance of style and functionality.

Specifications

Application

- Commercial

Regulatory & Voluntary Qulifications

ETL certified
Light Source Engine : LED
Driver/Power Unit/Transformer Power Supply Unit Regulating with constant light output
Not intended for use in environments containing airborne corrosive agents
TM21 results are available upon request

Special Features

Base Type: G13, R1, D7FA8, G16T-5, Rotable Tubes

Field Beam Angles

MODEL	Beam	Beam Angle	9.8 ft	19.7 ft	29.5 ft
BSL-TL18-TBU-BSES-5000K-160	160	160	60.9	15.2	6.8

Technical Specifications

	18W
Lumens	2160
Efficacy	120
CRI	80 (5000K)
Voltage Input	100-277V
Voltage Output	36V
Amperage	1
Hertz	50-60 Hz
Total Harmonic Dist.	<25%
Control Options	Non-Dimmable
Operating Temp.	-4~104°F
IP Rating	IP20
IK Level	N/A
Weight	1 lb
Driver Life	50000 hrs

1 LM80 and TM21 results are available upon request.

Specifications are subject to change without notice.

Downloads

Spec Sheets

2′ Linear Luminaire	DOWNLOAD
4′ Linear Luminaire	DOWNLOAD

IES Files

18W

BSL-LL18-PL2-3000K-110	DOWNLOAD
BSL-LL18-PL2-4000K-110	DOWNLOAD
BSL-LL18-PL2-5000K-110	DOWNLOAD

25W

BSL-LL25-PL2-3000K-110	DOWNLOAD
BSL-LL25-PL2-4000K-110	DOWNLOAD
BSL-LL25-PL2-5000K-110	DOWNLOAD

36W

BSL-LL36-PL4-3000K-110	DOWNLOAD
BSL-LL36-PL4-4000K-110	DOWNLOAD
BSL-LL36-PL4-5000K-110	DOWNLOAD

50W

BSL-LL50-PL4-3000K-110	DOWNLOAD
BSL-LL50-PL4-4000K-110	DOWNLOAD
BSL-LL50-PL4-5000K-110	DOWNLOAD

Photometric Layouts

*Foot candles vary

Additional information

Beam Angle	18°, 190°, 210°
CRI	90
CCT	2500K-3500K
Efficacy	110 lm/w
