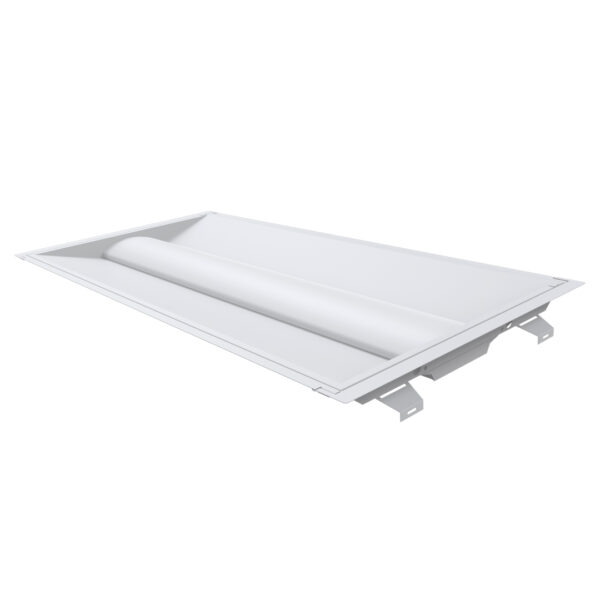

The Big Shine LED 2×4 troffer has a great structure and design for easy installation. This luminaire was engineered as an energy-efficient and eco-friendly retrofit.
The simple design of our Troffer/Retrofit Kit provides maximum light distribution which is ideal for commercial and industrial applications. Available with 0-10V dimming capability.
Base Type: G13, R1, D7FA8, G16T-5, Rotable Tubes
MODEL | Beam | Beam Angle | 9.8 ft | 19.7 ft | 29.5 ft |
|---|---|---|---|---|---|
BSL-TL18-TBU-BSES-5000K-160 | 160 | 160 | 60.9 | 15.2 | 6.8 |
| 18W | |
|---|---|
Lumens | 2160 |
Efficacy | 120 |
CRI | 80 (5000K) |
Voltage Input | 100-277V |
Voltage Output | 36V |
Amperage | 1 |
Hertz | 50-60 Hz |
Total Harmonic Dist. | <25% |
Control Options | Non-Dimmable |
Operating Temp. | -4~104°F |
IP Rating | IP20 |
IK Level | N/A |
Weight | 1 lb |
Driver Life | 50000 hrs |
1 LM80 and TM21 results are available upon request.
Specifications are subject to change without notice.
| Beam Angle | 18°, 190°, 210° |
|---|---|
| CRI | 90 |
| CCT | 2500K-3500K |
| Efficacy | 110 lm/w |
Big Shine LED is an LED lighting manufacturer, a subsidiary of technology company Big Shine Worldwide.
