CPX

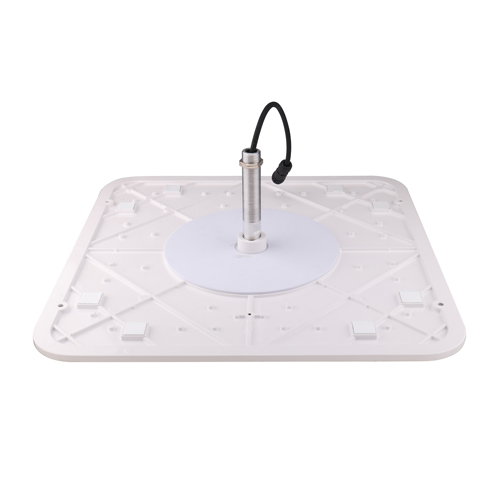

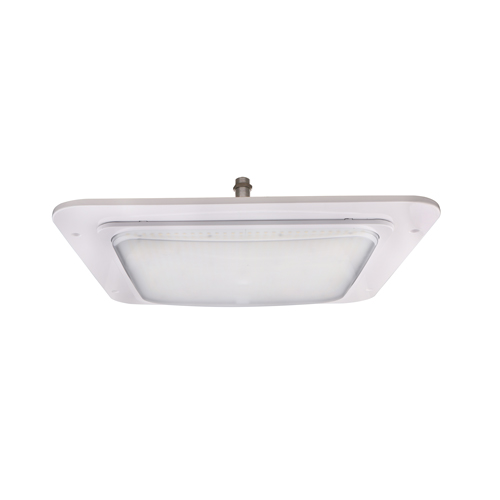

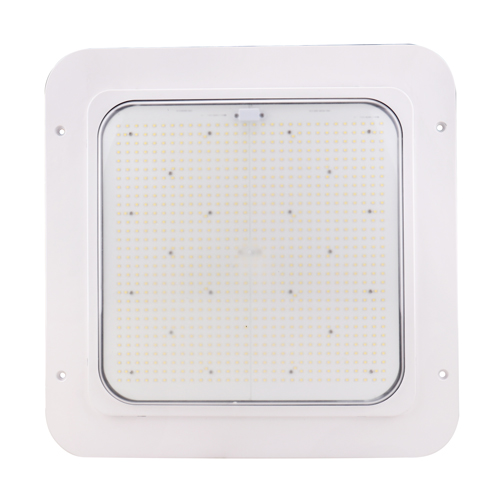

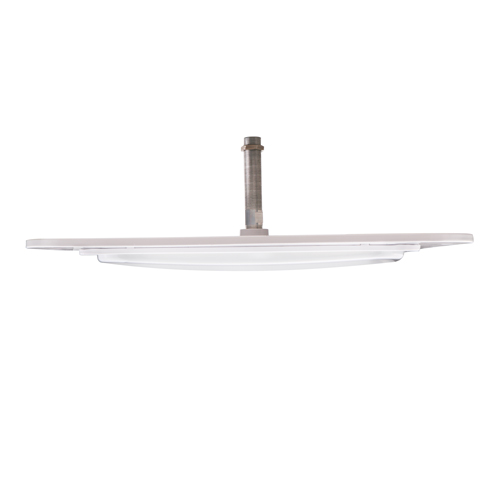

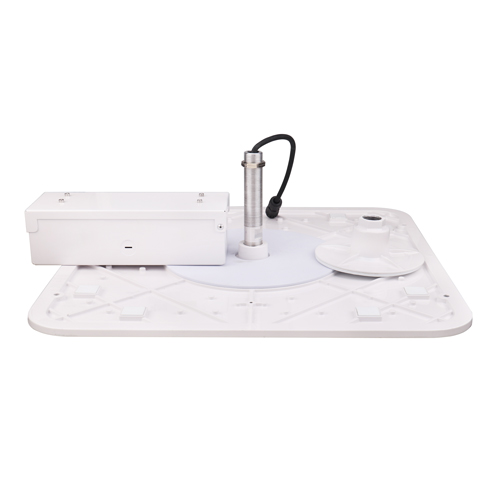

Introducing Big Shine LED’s latest LED canopy luminaire, the CXP. It’s the perfect lighting solution to upgrade your fleet’s outdoor maintenance stations. With its square shape and compact design, the CXP LED canopy luminaire is an ideal replacement for outdated, inefficient HID bulb fixtures. Measuring 20.5″ x 20.5″, the CXP LED canopy is easy to install and can be mounted directly onto most fuel pump canopies.

Featuring a beam angle of 110°, the CXP LED canopy delivers bright and even illumination throughout the entire canopy area, ensuring maximum visibility and safety for your drivers with easy installation for hassle-free upgrades to your outdoor space.

Specifications

Regulatory & Voluntary Qulifications

  • ETL certified
  • Light Source Engine : LED
  • Driver/Power Unit/Transformer Power Supply Unit Regulating with constant light output
  • Not intended for use in environments containing airborne corrosive agents
  • TM21 results are available upon request

Special Features

Base Type: G13, R1, D7FA8, G16T-5, Rotable Tubes

Field Beam Angles

MODEL

Beam

Beam Angle

9.8 ft

19.7 ft

29.5 ft

BSL-TL18-TBU-BSES-5000K-160

160

160

60.9

15.2

6.8

Technical Specifications

18W

Lumens

2160

Efficacy

120

CRI

80 (5000K)

Voltage Input

100-277V

Voltage Output

36V

Amperage

1

Hertz

50-60 Hz

Total Harmonic Dist.

<25%

Control Options

Non-Dimmable

Operating Temp.

-4~104°F

IP Rating

IP20

IK Level

N/A

Weight

1 lb

Driver Life

50000 hrs

1 LM80 and TM21 results are available upon request.

Specifications are subject to change without notice.

Downloads

Spec Sheets

SPECIFICATION SHEET DOWNLOAD

IES Files

BSL-CP150-CPX-5000K-110° DOWNLOAD
BSL-CP180-CPX-5000K-110° DOWNLOAD
BSL-CP240-CPX-4000K-110° DOWNLOAD

Photometric Layouts

*Foot candles vary

Additional information

Beam Angle

18°, 190°, 210°

CRI

90

CCT

2500K-3500K

Efficacy

110 lm/w
