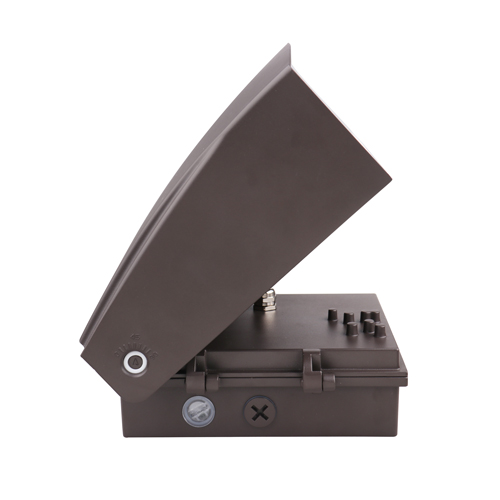

PRIMUS XS

Introducing our versatile and energy-efficient adjustable LED wall pack, the Primus AX, the ultimate solution for outdoor lighting needs. With its adjustable design and powerful LED technology, this wall pack provides exceptional performance and versatility for a wide range of applications.

Featuring a sleek and durable aluminum housing, this wall pack is built to withstand harsh outdoor environments and provide reliable lighting for years to come. Its adjustable design allows you to customize the direction of the light, ensuring optimal coverage for your space.

With power and CCT (correlated color temperature) adjustability, you can fine-tune the lighting to create the perfect ambiance for your building exterior.

Specifications

Regulatory & Voluntary Qulifications

  • ETL certified
  • Light Source Engine : LED
  • Driver/Power Unit/Transformer Power Supply Unit Regulating with constant light output
  • Not intended for use in environments containing airborne corrosive agents
  • TM21 results are available upon request

Special Features

Base Type: G13, R1, D7FA8, G16T-5, Rotable Tubes

Field Beam Angles

MODEL

Beam

Beam Angle

9.8 ft

19.7 ft

29.5 ft

BSL-TL18-TBU-BSES-5000K-160

160

160

60.9

15.2

6.8

Technical Specifications

18W

Lumens

2160

Efficacy

120

CRI

80 (5000K)

Voltage Input

100-277V

Voltage Output

36V

Amperage

1

Hertz

50-60 Hz

Total Harmonic Dist.

<25%

Control Options

Non-Dimmable

Operating Temp.

-4~104°F

IP Rating

IP20

IK Level

N/A

Weight

1 lb

Driver Life

50000 hrs

1 LM80 and TM21 results are available upon request.

Specifications are subject to change without notice.

Downloads

Spec Sheets

BSL-WP15-PXS & BSL-WP-80-PXS DOWNLOAD
BSL-WP100-PXS & BSL-WP-120-PXS DOWNLOAD

IES Files

BSL-WP15-PXS-5000K-90×110 (120V) DOWNLOAD
BSL-WP30-PXS-5000K-90X110 (120V) DOWNLOAD
BSL-WP50-PXS-5000K-90×110 (120V) DOWNLOAD
BSL-WP80-PXS-5000K-90×110 (120V) DOWNLOAD
BSL-WP100-PXS-5000K-90×110 (120V) DOWNLOAD
BSL-WP100-PXS-5000K-90×110 (277V) DOWNLOAD
BSL-WP100H-PXS-5000K-90×110 (480V) DOWNLOAD
BSL-WP120-PXS-5000K-90×110 (277V) DOWNLOAD
BSL-WP120H-PXS-5000K-90×110 (480V) DOWNLOAD

Photometric Layouts

*Foot candles vary

Additional information

Beam Angle

18°, 190°, 210°

CRI

90

CCT

2500K-3500K

Efficacy

110 lm/w
